Capacitors
Ultra-small MLCC (01005)
a. Miniature microwave module.
b. Portable equipments (ex. Mobile phone, PDA).
c. High frequency circuits.
If there is no specification you need, please write to let us know, and there will be someone to help you in the future.

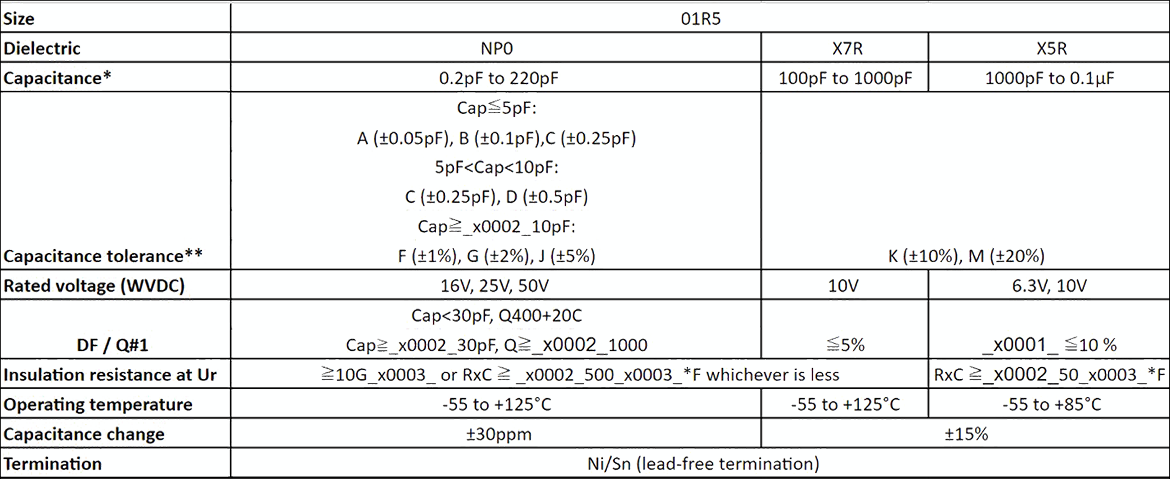

* Measured at 30~70% related humidity.
NP0: Apply 0.5~5Vrms, 1.0MHz±10% at the condition of 25°C ambient temperature.
X7R: Apply 1.0±0.2Vrms, 1.0kHz±10%, at 25°C ambient temperature.
X5R: Apply 0.5±0.2Vrms#1 or 1.0±0.2Vrms , 1.0kHz±10%, at the condition of 25°C ambient temperature.
** Preconditioning for Class II MLCC: Perform a heat treatment at 150±10°C for 1 hour, then leave in ambient condition for 24±2 hours before measurement.
#1: Please refer to “RELIABILITY TEST CONDITIONS AND REQUIREMENTS” for detail.
* Measured at 30~70% related humidity.
NP0: Apply 0.5~5Vrms, 1.0MHz±10% at the condition of 25°C ambient temperature.
X7R: Apply 1.0±0.2Vrms, 1.0kHz±10%, at 25°C ambient temperature.
X5R: Apply 0.5±0.2Vrms#1 or 1.0±0.2Vrms , 1.0kHz±10%, at the condition of 25°C ambient temperature.
** Preconditioning for Class II MLCC: Perform a heat treatment at 150±10°C for 1 hour, then leave in ambient condition for 24±2 hours before measurement.
#1: Please refer to “RELIABILITY TEST CONDITIONS AND REQUIREMENTS” for detail.
If there is no specification you need, please write to let us know, and there will be someone to help you in the future.
